PCB Product Range
From prototype to mass production, we cover full-range PCB manufacturing services tailored to your specifications.

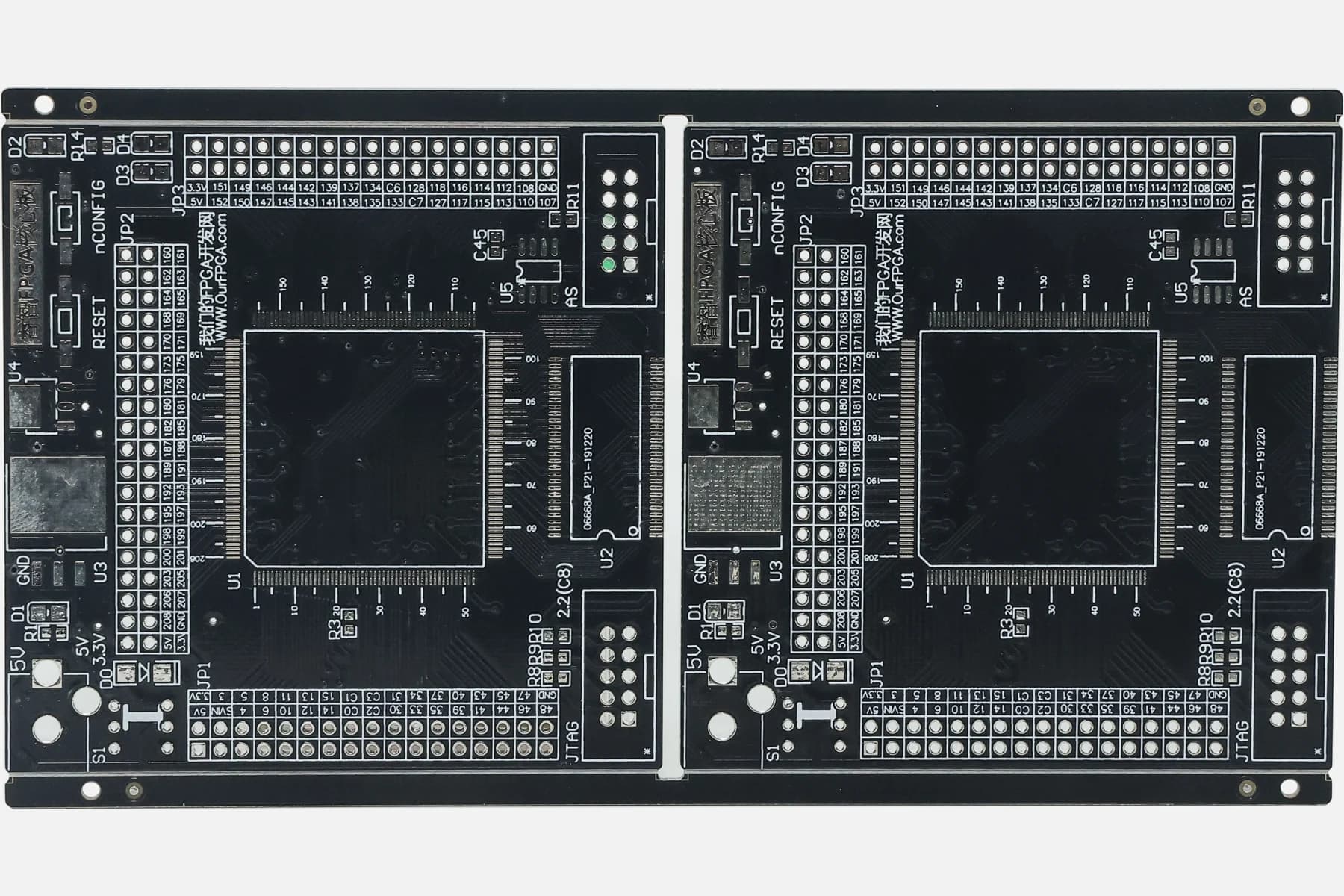

FR-4 Double Layer PCB
MaterialFR-4
Layers2
Colorgreen, black, white ...
Finished Thickness0.4 - 4.0mm
Copper Thickness1 - 6oz
Surface TreatmentHASL, Lead-free HASL, ENIG ...
Min Trace/Space3/3 mil
Applicationindustries.consumer.name, industries.led.name, Industrial Control, Telecommunications

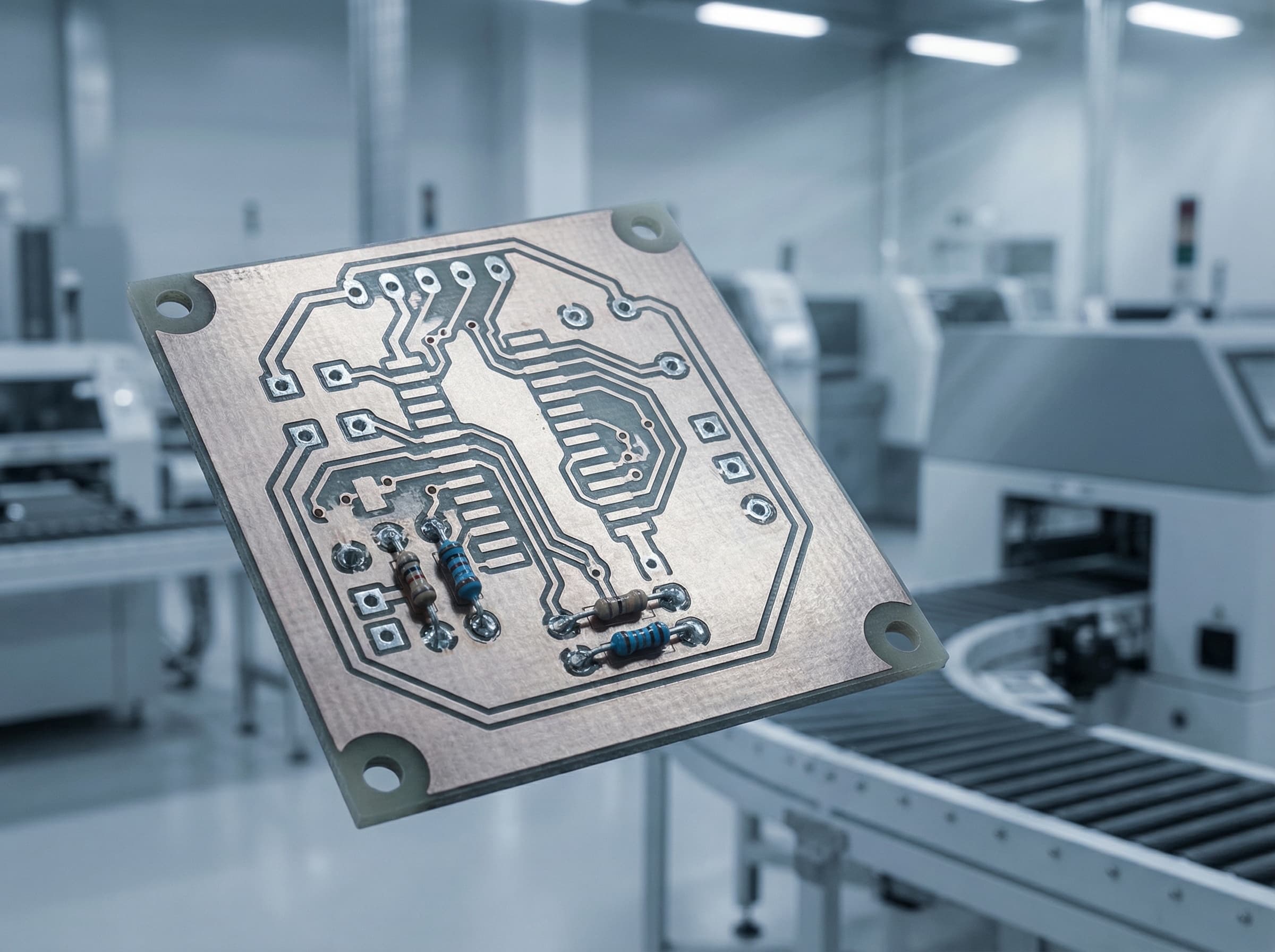

Single-Sided PCB
MaterialFR-4
Layers1
Colorgreen, black, white
Finished Thickness0.4 - 2.0mm
Copper Thickness1 - 3oz
Surface TreatmentHASL, Lead-free HASL, OSP
Min Trace/Space6/6 mil
Applicationindustries.consumer.name, industries.led.name, industries.toys.name

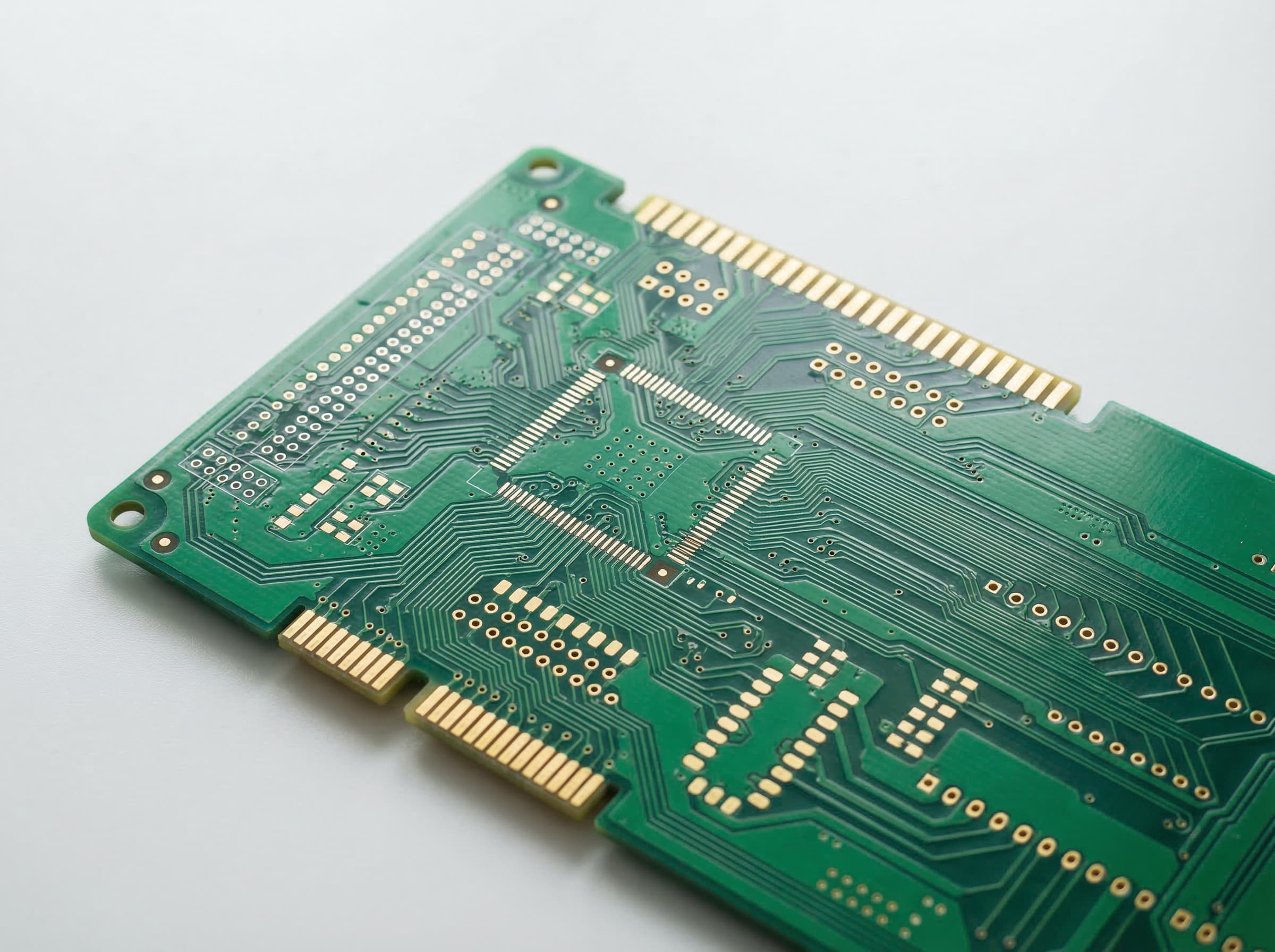

Keyboard PCB
MaterialFR-4, PI, Aluminum
Layers2
Colorblue, white, black ...
Finished Thickness1.0 - 1.2mm
Copper Thickness1oz
Surface TreatmentOSP
Min Trace/Space6/6 mil
ApplicationComputer & Server, Industrial Control, Telecommunications, Automotive Electronics

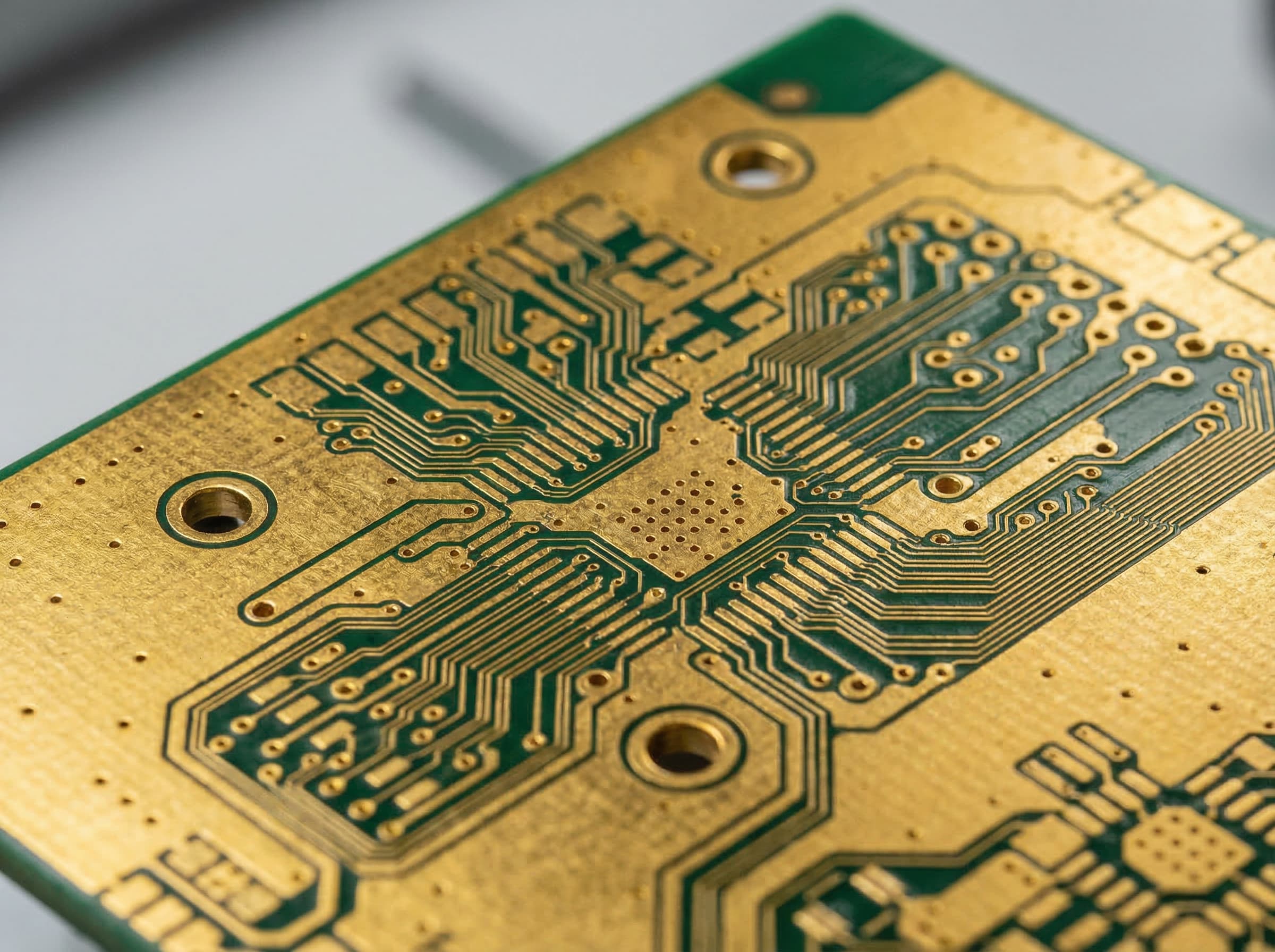

ENIG Immersion Gold PCB
MaterialTG130 - TG180 FR-4
Layers2 - Multilayer
Colorgreen, blue, white
Finished Thickness0.6 - 2.0mm
Copper Thickness0.5 - 3oz
Surface TreatmentImmersion Gold, ENIG
Min Trace/Space4/4 mil
ApplicationMedical Electronics, Automotive Electronics, Industrial Control, Telecommunications

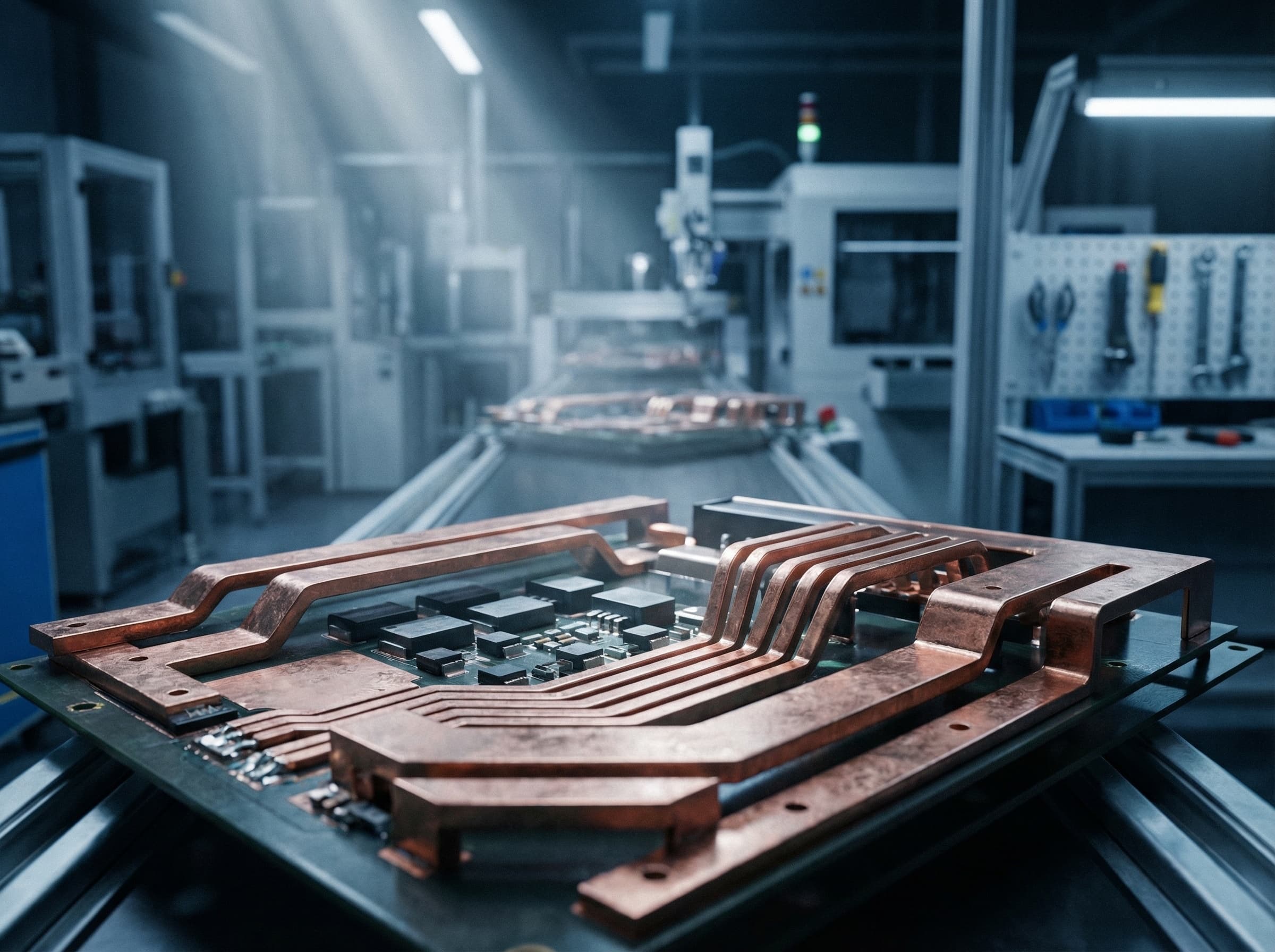

Heavy Copper PCB
MaterialFR-4
Layers1 - 8
Colorgreen, black
Finished Thickness0.8 - 4.0mm
Copper Thickness3 - 10oz
Surface TreatmentHASL, Lead-free HASL, ENIG ...
Min Trace/Space4/4 mil
ApplicationAutomotive Electronics, Industrial Control, industries.power.name, Telecommunications

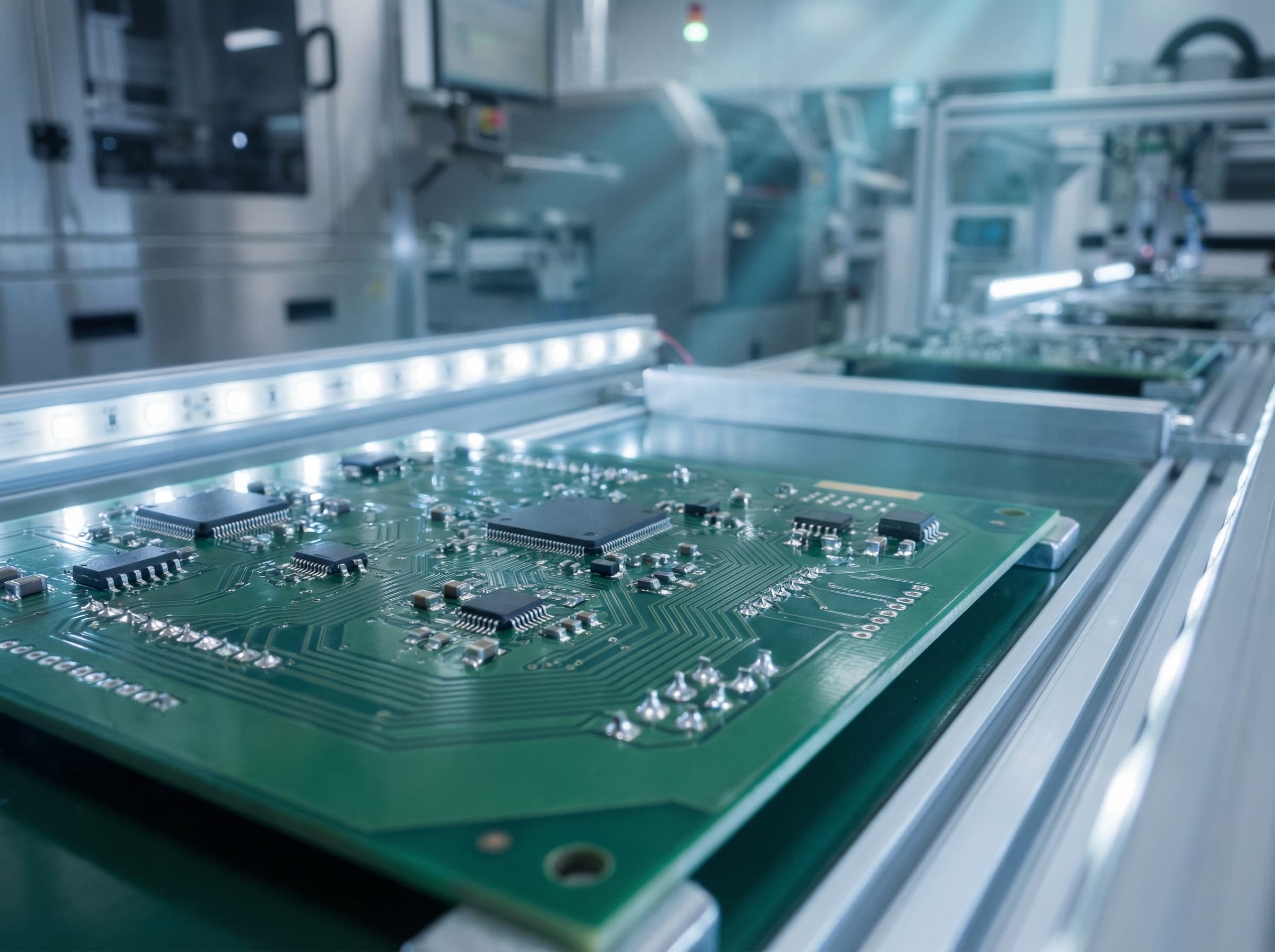

Halogen-Free PCB
MaterialHalogen-Free FR-4
Layers1 - 8
Colorgreen, black
Finished Thickness0.4 - 3.2mm
Copper Thickness1 - 4oz
Surface TreatmentHASL, Lead-free HASL, ENIG ...
Min Trace/Space3/3 mil
Applicationindustries.consumer.name, Medical Electronics, Automotive Electronics
Get Your PCB Quote
Upload your Gerber file | we reply within 24 hours.
