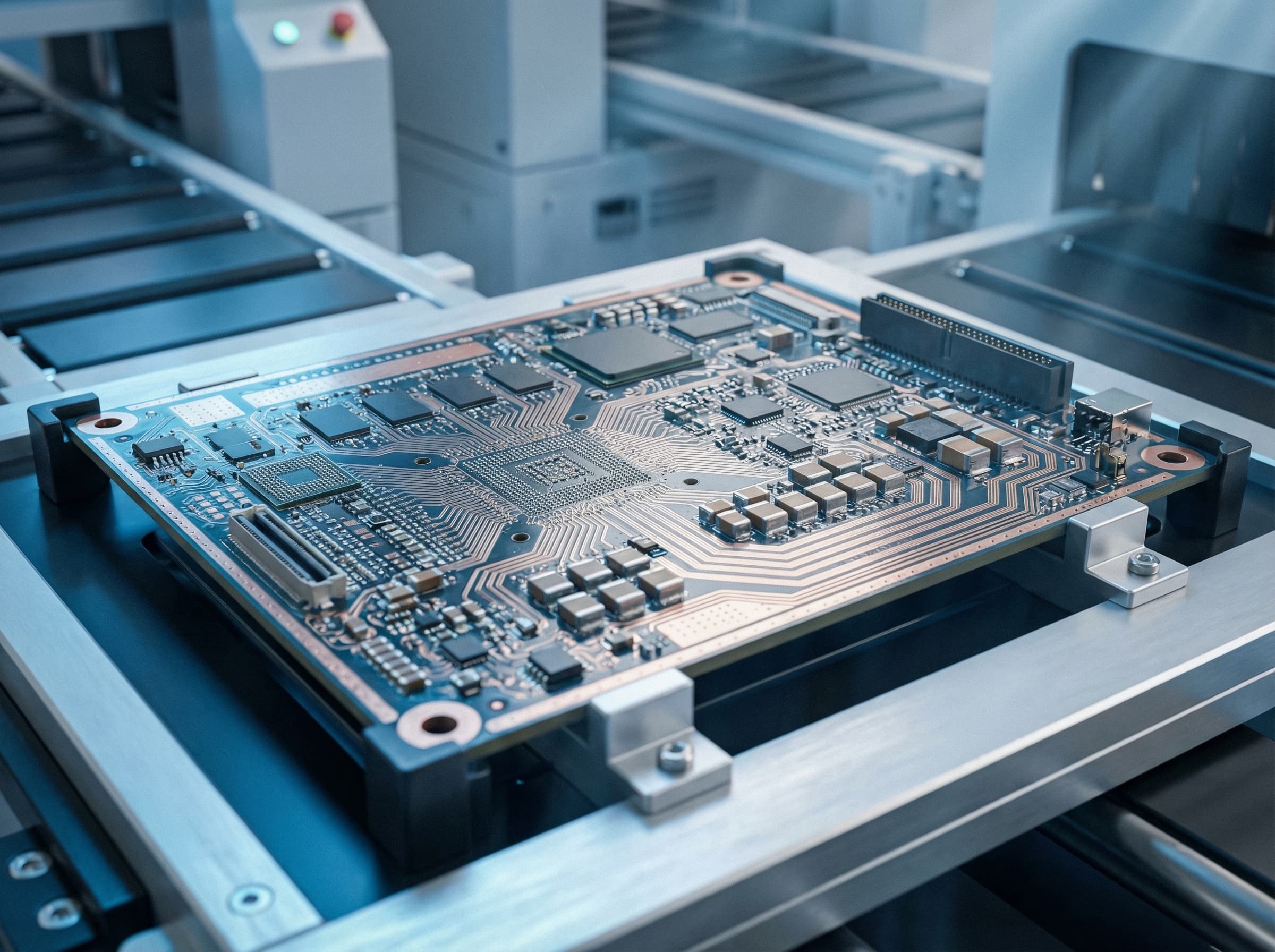

8-layer PCBs occupy the performance tier where complex digital designs, high-speed serial interfaces, and multi-rail power systems converge. XinAn PCB produces 8-layer boards on FR-4 substrates with Tg values from 170°C to 250°C, supporting high-frequency designs with controlled impedance for PCIe Gen4, 10G Ethernet, and DDR5 memory interfaces. With four signal layers and four reference/power planes in a typical configuration, the 8-layer stackup provides the electromagnetic isolation and routing density needed for FPGA carrier boards, high-end industrial controllers, and advanced communication equipment. Our process achieves 3/3mil trace/space, 0.1mm laser via capability, and ±7% impedance control across all controlled impedance layers.
Stackup Optimization for High-Frequency Design
The 8-layer stackup offers multiple viable configurations depending on design priorities. A common high-speed arrangement is signal/ground/signal/power/ground/signal/ground/signal, placing every signal layer immediately adjacent to a solid reference plane. This ensures that all controlled impedance traces see a consistent, uninterrupted reference with return current paths directly beneath the signal trace. For 10Gbps+ SerDes interfaces like PCIe Gen4 (16GT/s NRZ) or 25G Ethernet, we specify low-loss FR-4 laminates with Df ≤ 0.010 at 10GHz to keep insertion loss within channel budget. Differential pair routing on internal stripline layers provides superior noise isolation compared to outer microstrip layers, with 10-15dB better far-end crosstalk performance. We model each stackup using 2D field solvers with validated dielectric property inputs and provide impedance reports showing predicted vs. measured values on every production lot.
Via Structures and HDI Integration
8-layer boards frequently incorporate blind, buried, and microvias to support BGA fanout on 0.5mm pitch devices. Our sequential lamination process for 8-layer HDI boards uses two or three lamination cycles depending on the via structure complexity. Stacked microvias (via-on-via) from L1 to L3 are achieved through sequential laser drilling and plating, with copper fill plating providing flat via surfaces suitable for via-in-pad designs. Buried vias between inner layer pairs (L3-L6, for example) are drilled and plated on sub-laminate cores before final lamination. The aspect ratio for through-hole vias is maintained below 10:1 to ensure reliable plating—for a 1.6mm board thickness, minimum through-hole drill size is 0.2mm. Back-drilling (controlled depth drilling from the stub side) is available for high-speed differential pairs where via stubs would degrade signal integrity above 5GHz.
Application Domains
8-layer PCBs serve demanding applications where signal integrity and power integrity are equally critical. FPGA development and carrier boards for Xilinx Artix/Kintex or Intel Cyclone/Arria families typically require 8 layers for the combination of high-pin-count BGA fanout, multiple power rails (often 6-10 distinct voltages), and high-speed I/O routing. Network switches and routers processing 10G-25G per port use 8-layer boards for the switch ASIC carrier and PHY interface sections. Medical imaging equipment—ultrasound front-end boards, CT detector readout electronics—specifies 8-layer constructions with tight impedance control for analog signal fidelity. Test and measurement instruments including oscilloscope front-ends and spectrum analyzer IF processing boards rely on 8-layer stackups to isolate sensitive analog circuits from digital noise sources.
Reliability and Qualification Testing
8-layer boards at XinAn PCB undergo the full IPC-6012 Class 2/3 inspection regimen supplemented with additional high-frequency validation. Impedance testing on production coupons covers every controlled impedance layer, not just a representative subset. Insertion loss verification using VNA (Vector Network Analyzer) measurement is available for designs with channel loss budgets below 10dB at the Nyquist frequency. Thermal reliability is verified through IST (Interconnect Stress Testing) per IPC-TM-650 2.6.26, subjecting via structures to 150+ thermal cycles from ambient to 150°C by resistive heating, monitoring resistance change to detect incipient barrel fatigue. Cross-sections verify minimum 20μm via barrel copper, plating void-free at 3× magnification, and cap plating thickness on filled microvias within ±5μm of target.
